En1092-1 BSPT Threaded Stainless Steel Pipe Flange 304L 316L
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | ASME B16.5, ASME B16.47, API 6A, EN 1092-1, BS 4504, BS 10, DIN, JIS, GOST. | Material | SS316, SS316L, SS304/304L, DUPLEX SS UNS31803, UNS32750, 904L, INCONEL625, |
|---|---|---|---|
| Size | 1/2″ (DN15) ~ 48″ (DN1200) | Types | Weld Neck, Slip On, Blind, Socket Weld, Threaded, Lap Joint, Spectacle, Paddle, Long Weld Neck, Spacer, Orifice, Reduced, Plate |
| Pressure Rating | Class 150, 300, 400, 600, 900, 1500, 2500; PN 6, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100, PN 160, PN 250, PN 320, PN 400. | ||
| High Light | Threaded Stainless Steel Pipe Flange,BSPT Stainless Steel Pipe Flange,316L stainless pipe flanges |
||
Product Description

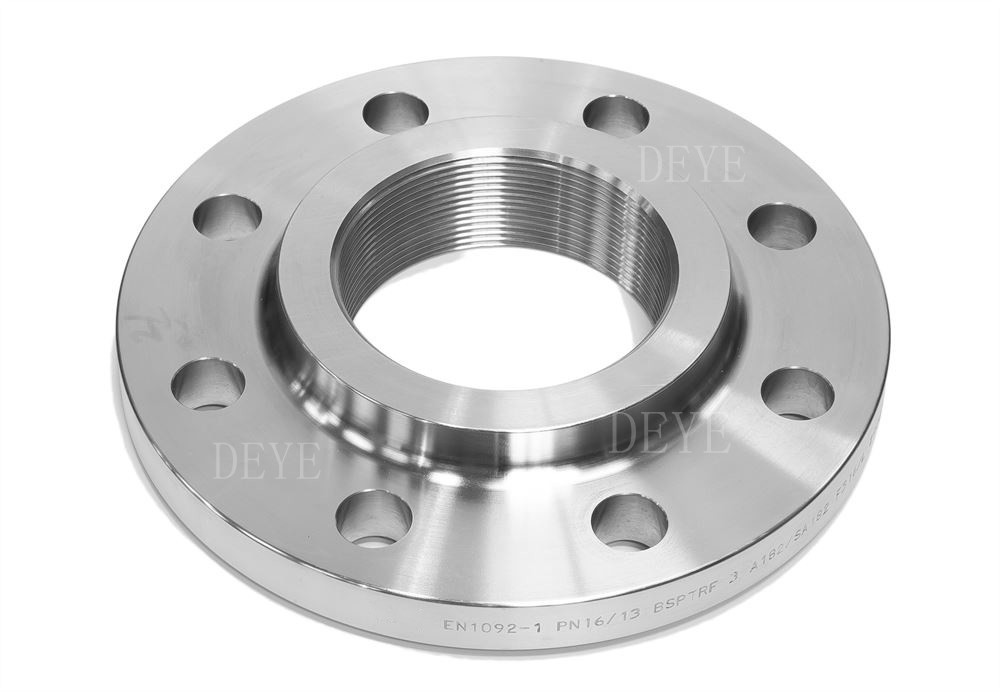

EN1092-1 BSPT Threaded Flange With Stainless Steel 304L 316L
316L stainless steel threaded flange is almost identical to 316 threaded flange. The only difference is the carbon content. 316L is lower carbon content imparts even better corrosion resistance than 316. 316L does not require post-weld annealing. And between 304 flanges and 304L fanges, The only difference is the carbon content, too. Type stainless steel 304 has a maximum carbon of 0.07% . Type stainless steel 304L has maximum carbon of 0.030 %. This range of carbon in the threaded flanges affects the corrosion resistance.
Product Information/Product Description/Basis Information/Specification
| Product Name | EN1092-1 BSPT THREADED FLANGE WITH STAINLESS STEEL 304L 316L | |
| Types |
● Stainless steel Blind Flanges ● Stainless steel Spectacle Blinds ● Stainless steel High Hub Blinds ● Stainless steel Orifice Flanges ● Stainless steel Slip-on Flanges ● Stainless steel Socket Weld Flanges ● Stainless steel Weld Neck Flanges ● Stainless steel Flat Flanges ● Stainless steel Loose Flanges ● Stainless steel Threaded Flanges ● Stainless steel Lap Joint Flanges ● Stainless steel Reducing Threaded ● Stainless steel Weld Neck Flanges Series A or B ● Stainless steel Square Flanges ● Stainless steel Groove & Tongue Flanges ● Stainless steel Spade Flanges ● Stainless steel Forged flanges ● Stainless steel Raised Face Flanges ● Stainless steel RTJ Flanges ● Stainless steel Pipe Flange Spacer Ring |
|
| Face Finish | Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ), LM, TF,GF | |
| Material | ANSI | Stainless Steel SS 304/304L,316/316L, SS321, SS347H, SS316TI, SS304HM SS316H, 904L, UNS31803, UNS32750, UNS32760 |
| Alloy Steel: WHPY45/52/65/80/A 182 Grade F 5, A 182 Grade F 9, A 182 Grade F 11, F 12, F22, F91, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), | ||
| Steels for Low Temperature Service: A 350 Grade LF 1, A350LF2, A350LF4, A350LF6, A350LF8. CL1/CL2, LF3 CL1/CL2, | ||
| Normally use: CS A105/SA 105N | ||
| DIN | SS 304/304L,316/316L, Stainless steel1.4301, 1.4404, SAF2205, SAF2507,CS RST37.2;S235JR | |
| GOST | SS 304/304L,316/316L CS CT20;16MN; | |
| EN | SS 304/304L,316/316L CS RST37.2;S235JR;C22.8 | |
| JIS | SS 304/304L, 316/316L CS SS400,SF440, | |
| BS | SS 304/304L,316/316L CSRST37.2;S235JR;C22.8;Q235 | |
| UNI | C SS 304/304L,316/316L SRST37.2;S235JR;C22.8;Q235 | |
| SABS | 304/304L,316/316L CSRST37.2;S235JR;Q235 | |
| Pressure | ANSI | Class 150, 300, 600, 900, 1500 2500lbs, with welded thickness of Sch10s, SCH40s, SCH80s, SCH160s. SCHXXS |
| DIN | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| GOST | PN6,PN10,PN16,PN25 | |
| EN | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| JIS | 1K,2K,5K,10K,16K,20K,30K,40K | |
| BS | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| UNI | PN6,PN10,PN16,PN25,PN40 | |
| SABS | 600KPA,1000,1600,2500,4000 | |
| Size | ANSI | 1/2” – 60” |
| DIN | DN15-DN2000 | |
| GOST | DN10-DN1600 | |
| EN | DN15-DN2000 | |
| JIS | 15A-1500A | |
| BS | DN15-DN2000 | |
| UNI | DN10-DN2000 | |
| SABS | DN10-DN600 | |
| Surface | Oil Black Paint, varnish, Golden yellow paint, anti-rust oil, galvanizing, Cold and Hot Dip Galvanized etc, Zinc plating. chrome plating. Black treatment, anodize, powder coating. punishment, brass plating. etc. | |
Flanges Specification and different types
ASME/ANSI B16. 5:
WELDING NECK FL ANGE, SLIPON FL ANGE. BLIND FLANGE. HIGH HUB BLIND FLANGE.
SOCKET WELD FL ANGE. LAPJOINT FLANGE,THREADED FL ANGE. RING TYPE JOINT FLANGE.
Pressure Class: 1 50.300,400. 600.900,1500,2500
ASME/ANSI B16.47 :
WELDING NECK FLANGE, BLIND FLANGE.
Pressure Class: 75,150. 300, 400.600,900
ASME/ANSI B16.36:
ORIFICE FLANGE WELDING NECK FL ANGE, SLIPON FLANGE,THREADED FLANGE.
Pressure Cass: 300, 400,600,900, 1500,2500
AWWAC207
AWWA standard steel-ring flanges, Class B* (86 psi)
AWWA standard steel-ring flanges, Class D* (175-150psi)
AWWA standard steel-hub flanges, Class D* (175-150 psi)
AWWA standard steel-hub flanges, Class E* (275psi)
AWWA standard steel-ring flanges, Class E* (275psi), Blind flanges 275PSI
AWWA standard steel-ring flanges, Class F* (300psi), Blind flanges 300PSI
MSS-SP-44
WELDING NECK FLANGE, BLIND FLANGE TO ANSI B16.47 SERIES A
Pressure Class: 75,150. 300, 400.600,900
JIS B2220/B2291 :
WELDIG NECK FLANGE, SLIPON HUB FLANGE SLIPONPLATE FLANGE, SHUT OFF FLANGE,
SQUARE FLANGE.
Pressure Class:5K.10K 16K 20K 30K
BS4504SEC3.1
WELDING NECK FLANGE (111/134). HUBBED SLIPON FLANGE (112),
HUBBED THREADED FLANGE (113). LAPPED PIPE END FLANGE (133) PLATE FLANGE (101).
LOOSE PLATE FLANGE (102) LOOSE PLATE WITH WELD-NECK FLANGE (104). BLANK FLANGE
(105).
Pressure Class: PN2.5 TO PN 40
BS1560:
WELDING NECK FLANGE. SOCKET WELDING FLANGE SLIP-ON BOSS FLANGE BLIND FL ANGE,
SCREWED BOSS FLANGE, LAPPED FLANGE.
Pressure Class: 150,300,400,600,900, 1500,2500
BS 10:
WELDING NECK FL ANGE. PL ATE SLIP-ON FLANGE. SCREWED, BOSS FLANGE,
SLIPON BOSS FLANGE, BLIND FLANGE.
Table: D.E,F,H
DIN FLANGE:
DIN2573.DIN2576.DIN2641891 DIN2642. DIN2655. DIN2656, DIN2632 DIN263.DIN2634.
DIN2635.DIN2636. DIN2637.DIN2638.DIN2673
Pressure from PN 6 TO PN320
AFNOR NFE 29-203:
PLATE FLANGE (01), LOOSE PL ATE FLANGE (02,03.04) BLIND FLANGE (05)
WELDING NECKFLANGE (111), HUBBED SLIP ON FLANGE (12) SCREWED FLANGE (13).
HUBBED SOCKET WELDING FLANGE(14),LOOSE HUBBED FLANGE(15),
INTEGRAL FLANGE (211)
Pressure Class: ISO- PN 2.5TO PN420
EN 092-1.
PLATE FLANGE SO (Type 01) LOOSE Plate flanges (Type02, 04) Blind flange (Type 05),
Welding Neck flange (Type 11), Hubbed Slip on Flange (Type 12), Screw Flange (Type 13),
Integral Flange (Type 21)
Pressure Class: PN2.5 to PN100
ASME/ANSI B16.9/MSS SP-43: STUB END. Type: A,B,C
UNI2253-67,UNI6091-67,UNI2276-67,UNI2280-67,UNI6089-67 PN6,PN10,PN16,PN25,PN40
GOST 12820-80,GOST 12821-80,Gost Blind
PN6,PN10,PN16,PN25, PN40, PN63, PN100, PN150,PN250
SABS1123
Technology/ How to use and install the different flange types
WELDING NECK FLANGES
They are connected to the pipe by means of a Butt weld connection. They are
used when X-ray testing is required or if the torque over unions are maximum.
Its long tapered neck optimizes the stress distribution
SLIP-ON FLANGES
This kind of flanges are installed with two weld bead, sliding the pipe inside.
Thus installation costs are lower, so less accuracy is required for pipe cutting.
THREADED FLANGES
They are usually installed with the pipe previously threaded, in places where
welding cannot be done. We do not recommend to install if there are high
pressure variations in the system
LAP JOINT FLANGES
They slide on an overlapped gasket. They are commonly used where it is
necessary to dismantle in order to be cleaned or repaired. Dismantling cost
decreases due to the ease of flange turning and drilling alignment.
.
SOCKET WELD FLANGES
This kind of flange is especially designed for lower small diameters and high
pressures. The pipe is inserted into the flange up to the seat and then is fillet
welded against the cube.
BLIND FLANGES
Blind flanges are utilized for pipe ends, and they bolted to any of the above
flange types.
The stainless steel material that normally used
Material Grades: Chemical Composition
| ASTM Design | Analysis in % max. | |||||||
| C | Mn | Si | P | S | Cr | Ni | Mo | |
| F304 L F316 F316L F321 |
0.030 0.08 0.030 0.08 |
2.00 2.00 2.00 2.00 |
1.00 1.00 1.00 1.00 |
0.045 0.045 0.045 0.045 |
0.030 0.030 0.030 0.030 |
18.00 - 20.00 16.00 - 18.00 16.00 - 18.00 17.00 - 19.00 |
8.00 - 13.00 10.00 - 14.00 10.00 - 15.00 9.00 - 12.00 |
2.00 - 3.00 2.00 - 3.00 |
| ASTM Design | Tensile strength | Fluency limit Elongation in 50 mm. | Stress | Brinell | Charpy - V | |||||
| Hardness (HB) |
Energy J | Testing Temp. ºC | ||||||||
| Ksi min. | MPa | Ksi min. | MPa | % min. | % min. | Min. 1 Test tube |
Average 3 Test tubes |
|||
| A182 - 07 | ||||||||||
| F304 | 751 | 5151 | 30 | 205 | 30 | 50 | 156 - 207 | |||
| F304L | 702 | 4852 | 25 | 170 | 30 | 50 | ||||
| F316 | 751 | 5151 | 30 | 205 | 30 | 50 | ||||
| F316L | 702 | 4852 | 25 | 170 | 30 | 50 | ||||
| F321 | 751 | 5151 | 30 | 205 | 30 | 50 | ||||
SAF2205 (UNS31803)
Chemical Composition%
| C≤ | Si ≤ | Mn≤ | P ≤ | S ≤ | Cr | Ni | Mo | Cu | N |
| 0.03 | 1.0 | 2.0 | 0.03 | 0.02 | 22-23 | 4.5-6.5 | 3.0-3.50 | / | 0.14-0.2 |
physical Performance
| Test Items | Test Temp. | Performance | Standard Data |
| Tensile Strength | Room Temp. | Yield Strength s≥ | 450 Mpa |
| Tensile Strength h ≥ | 620 Mpa | ||
| Elongation % > | 25 | ||
| Reduction of Area=> | / | ||
| Impact Value KV(J) | Room Temp. | Lateral | / |
| Brinell hardness | Room Temp. | ≤ | 290 |
| Rockwell hardness | Room Temp. | ≥ | / |
SAF2507(UNS32750)
Chemical Composition%
| c ≤ | Si≤ | Mn≤ | P≤ | S≤ | Cr | Ni | Mo | Cu≤ | N |
| 0.03 | 0.8 | 1.2 | 0.03 | 0.015 | 24-26 | 6.0-8.0 | 3.0-5.0 | 0.5 | 0.24-0.32 |
physical Performance
| Test Items | Test Temp. | Performance | Standard Data | |
| Tensile | Room Temp. | Yield Strength | Ø≤55 Rm≥ | 550 Mpa |
| Ø >55 Rm≥ | 515 Mpa | |||
| Tensile Strength | Ø≤55 R0.002 ≥ | 800 Mpa | ||
| Ø >55 R0.002≥ | 760 Mpa | |||
| Elongation A%(4D) > | Ø≤55 ≥ | 15 | ||
| Ø >55 ≥ | 15 | |||
| Brinell hardness HB | Room Temp. | Ø≤5 ≤ | 310 | |
| Ø >55 ≤ | 310 | |||
Flange Production Process/ Manufacture Prodcedure
Application/Usage
A flange is a method of connecting pipes, valves, pumps, and other equipment to form a piping system to convey the water, steam, air, gas and oil. It also provides easy access for cleaning, inspection, or modification.
Flange Photos for shipment
Slip on flanges, CL150LBS, threaded Flanges, 1500LBS RJ flanges, CL2500LBS Weld Neck flange, etc.
