Butt-Weld Bw Elbow/Tee/Reducer/Cap/Cross  The DIN2605 standard specifies seamless and welded steel elbows

and bends that are intended to be butt welded to pipes. Althoughthe wall thicknesses specified correspond to those of the pipes,

these fittings do not permit operation at the same internapressure as the pipe welded on, ie. they have a reduced pressure factor

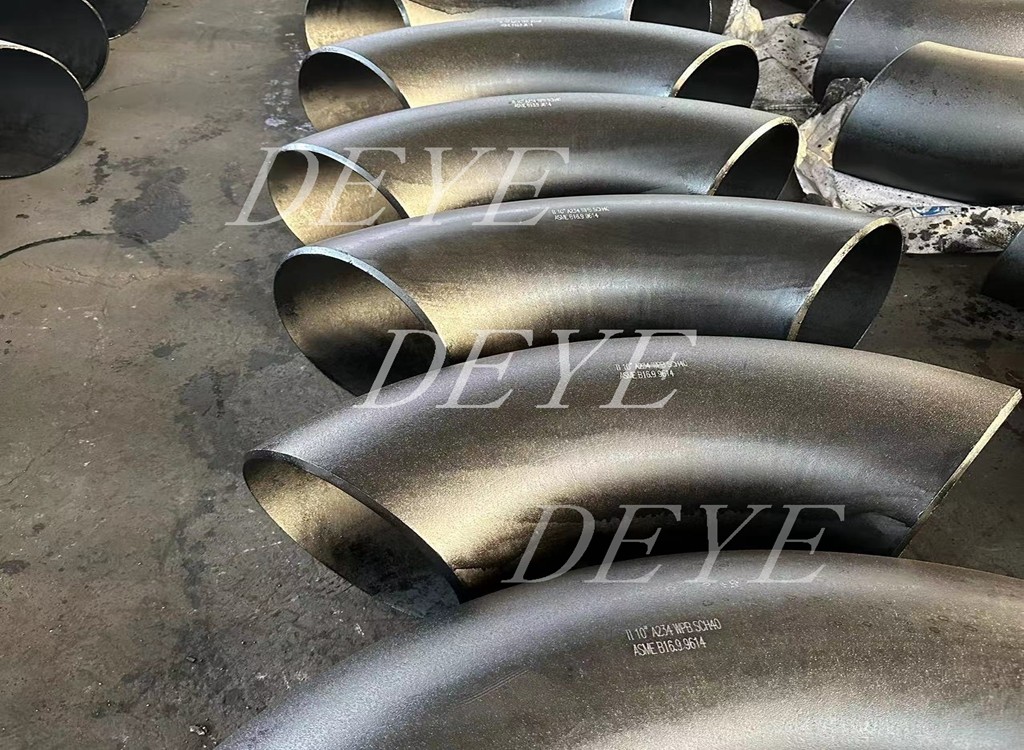

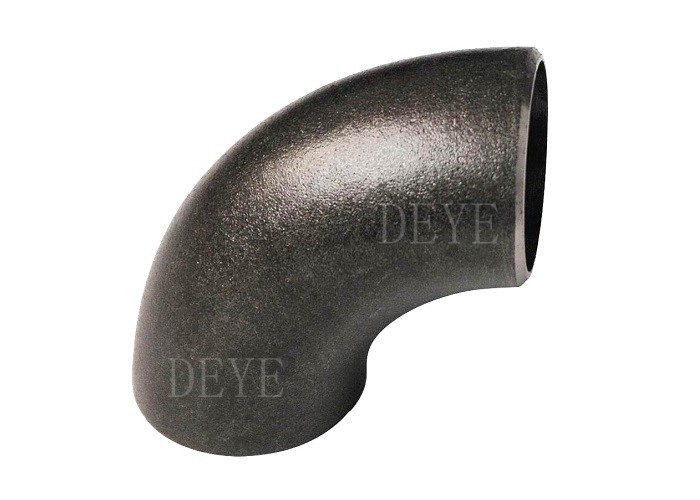

Elbows: Such pipe fittings are used to change the direction of the flow. Elbows They are majorly available in two standard types

- 90 and 45 degree angles owing to their high demand in plumbing. The 90-degree elbow is primarily used to connect hoses

to water pumps, valves, and deck drains, while the 45 degree elbow is mostly used in water supply facilities, electronic

and chemical industrial pipeline networks, food, air-conditioning pipelines, garden production, agriculture, and solar-energy facility.

Type 2: r=1.0D , Type 3: r=1.5D,  Type 5: r=2.5D, Type10 r=5.0D,  Type 20: r=10.0D

Designation of a type 3 (3) seamless (S) 90 (90) elbow in accordance with this standard (1), where dg is equal to 88,9 mm
and s is equal to 2,3 mm, made from material belonging to material group G as in DIN 2609 (G):

1) The pipe outside diameters given have been taken from series 1 in ISO 4200.

2)The wall thicknesses specified for series 2, for nominal sizes up to DN1000, are in accordance with the

normal wall thickness series given in DIN 2458.

Low and middle pressure fluid pipeline, boiler, petroleum and natural gas industry, drilling, chemical industry,

electric industry, shipbuilding, fertilizer equipment and pipeline, structure, petrochemical, pharmaceutical industries, etc.

Designation: A 234/A 234M – 05 Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for
Moderate and High Temperature Service

This specification covers wrought carbon steel and alloy steel fittings of seamless and welded construction covered
by the latest revision of ASME B16.9, B16.11, MSS SP-79, and MSS SP-95. These fittings are for use in pressure piping
and in pressure vessel fabrication for service at moderate and elevated temperatures. Fittings differing from these ASME and
MSS standards shall be furnished in accordance with Supplementary Requirement S58 of Specification A 960.

Chemical Requirements (Composition, %)

^{Mechanical  Performance Requirements}

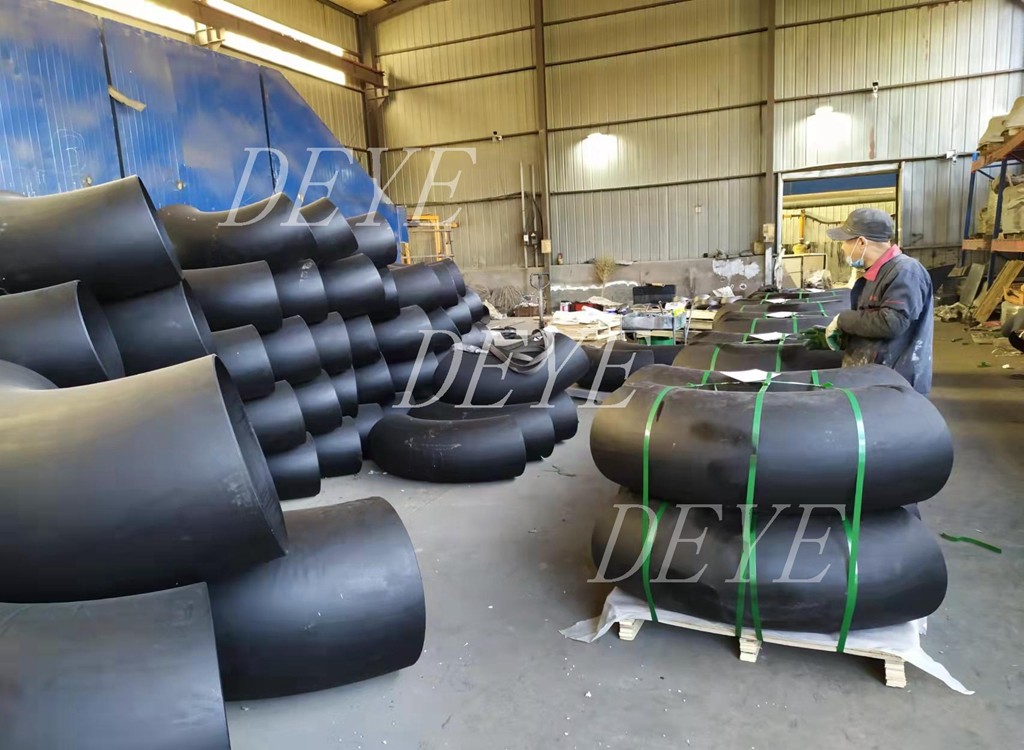

Elbow Marking process and reequipment

ELBOW Shaper Machining

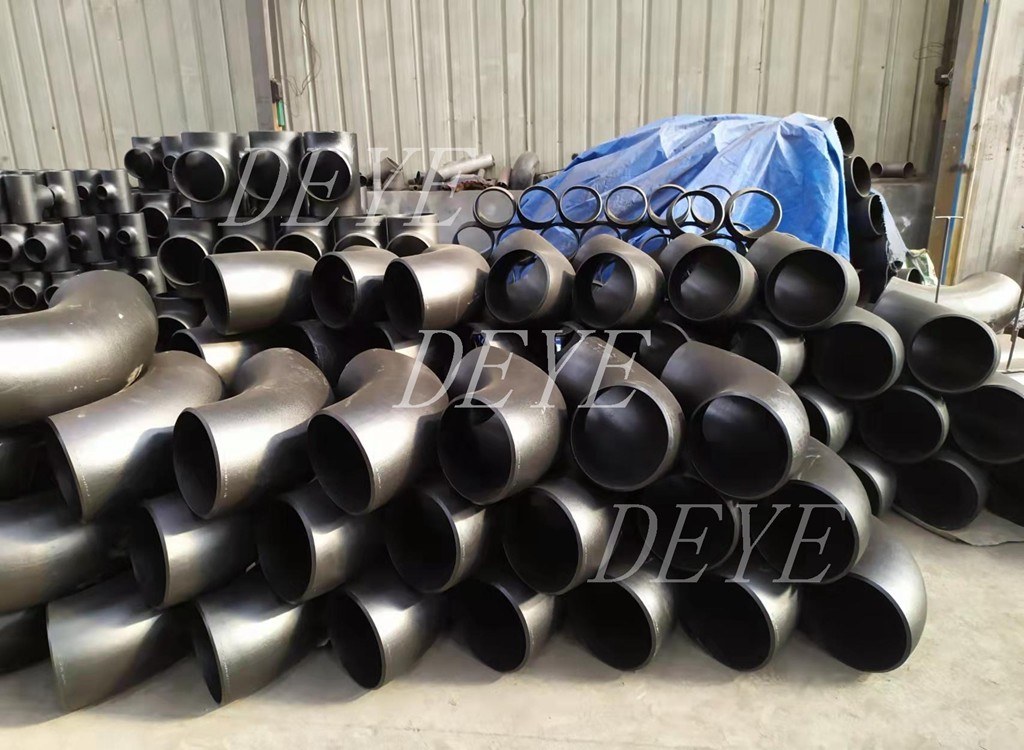

Tee form Process and equipment

Reducer Form process and equipment

Sand blasted process and equipment

Beveling Process

Painting Shop

Package For shipment

ASME B16.9 Specification for Butt Welded Fittings

ASME B16.9 specification is designed for butt welded fittings applied in industrial construction pipelines. Including elbow,

tee, cross, cap, reducer, and etc.

Standard Scope

The standard includes specifications of NPS 1/2 to NPS 48 (DN15-DN1200) factory-made wrought butt-welded pipe fittings

overall dimensions, tolerances ratings, test methods and markings.

Special Fittings

Special fittings here refer to special sizes, forms and tolerances that agreed between buyer and manufacturer.

Fabricated Fittings

Fabricated laterals and other fittings by circumferential or intersection welds are considered pipe fabrication

could not apply this standard.

Units under ASME B16.9 shall be stated in both SI (Metric) and U.S. Customary units. Designation for size is NPS.

Reference Standards

It is not considered practical to identify the specific edition of each standard and specification in the individual references.

A product made comply with a prior edition of referenced standards and in all other respects conforming to this standard

will be considered complied.

ASME B16.5: Pipe Flanges and Flanged Fittings: NPS 1∕2 Through NPS 24 Metric/Inch Standard

ASME B16.25: For Buttwelding Ends

ASME B31: Code for Pressure Piping

ASME B31.3: Process Piping

ASME B36.10M, Welded and Seamless Wrought Steel Pipe

ASME B36.19M, Stainless Steel Pipe

ASME Boiler and Pressure Vessel Code

ASTM A234/A234M-17, Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for

Moderate and High Temperature Service

ASTM A403/A403M-16, Specification for Wrought Austenitic Stainless Steel Piping Fittings

ASTM A420/A420M-16, Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for

LowTemperature Service

ASTM A815/A815M-14e1, Specification for Wrought Ferritic, Ferritic/Austenitic and Martensitic Stainless Steel Piping Fittings

ASTM A960/A960M-16a, Specification for Common Requirements for Wrought Steel Piping Fittings

ASTM E29-13, Practice for Using Significant Digits in Test Data to Determine Conformance With Specifications

ASTM B361-16, ASTM B363-14, ASTM B366/B366M-17: For other material metals. (Aluminum, Titanium, Nickel, and alloy).

Q: Customer asked for butt weld fittings in A105:

A: Most common carbon steel buttweld fitting material is A234WPB. It is equivalent to A105 flanges,

however there is no such thing as an A105 or A106 butt weld fitting A106 Gr.B is for pipe grade.

The A234WPB fittings are made from A106GR.B pipes. A105 is a material from Bar forged to

be High pressure Fittings or Flange

Q: Customer requests “Normalized” butt weld fittings:

A: This is also a misconception since flanges are available in A105 and A105 N, where N stands for normalized.

However, there is no such thing as A234WPBN. Manufactures normalize their butt weld fittings was considered

that normalized heat treating process was done, Especially for the elbows and Tees Customer needing

“normalized” butt weld fittings should request WPL6 fittings which are high yield and are normalized as a standard procedure.

Q: Customer forgets to mention pipe schedule:

A: Buttweld fittings are sold as per pipe size but pipe schedule must be specified to match the ID of the fitting to

the ID of the pipe. If no schedule is mentioned, we will assume a standard wall is requested.

Q; Customer forgets to mention welded or seamless butt weld fitting:

A: Butt weld fittings are available in both welded and seamless configuration. A seamless butt weld carbon steel

or stainless-steel fitting is made of seamless pipe and is generally more expensive. Seamless pipe fittings are

NOT common in sizes bigger than 12”. Welded pipe fittings are made of ERW welded carbon steel or

stainless-steel pipe. They are available in sizes ½” to 72” and are more affordable than seamless fittings.

Q: What does Short Radius (SR) or Long Radius (LR) means?

A: You will often hear SR45 elbow or LR45 elbow. The 45 or 90 refers to the angle of the bend for buttweld fitting

to change the direction of flow.A long radius elbow (LR 90 Elbow or LR 45 elbow) will have a pipe bend that

will be 1.5 times the size of the pipe. So, a 6 inch LR 90 has bending radius that is 1.5 x nominal pipe size.

A short radius elbow (SR45 or SR90) has a pipe bend that is equal to the size of the fitting, so a 6” SR 45

has a bending radius that is 6” nominal pipe size.

Q: What is a 3R or 3D elbow pipe fitting?

A: First, the terms 3R or 3D are used synonymously. A 3R butt weld elbow has a bending radius that is

3 times the nominal pipe size. A 3R elbow is equal to 3D Elbows
