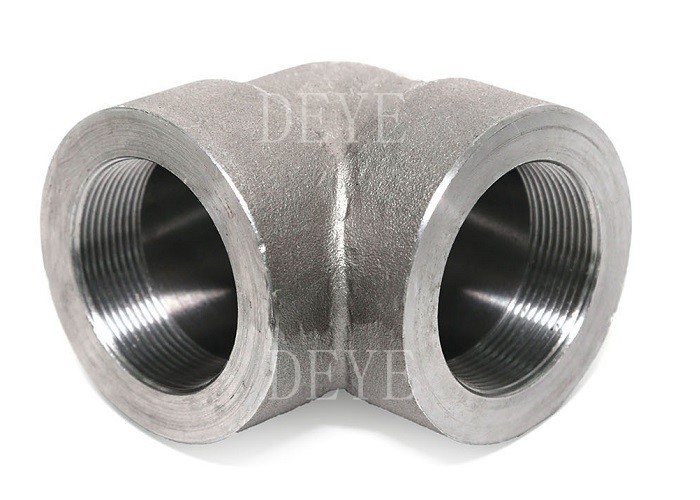

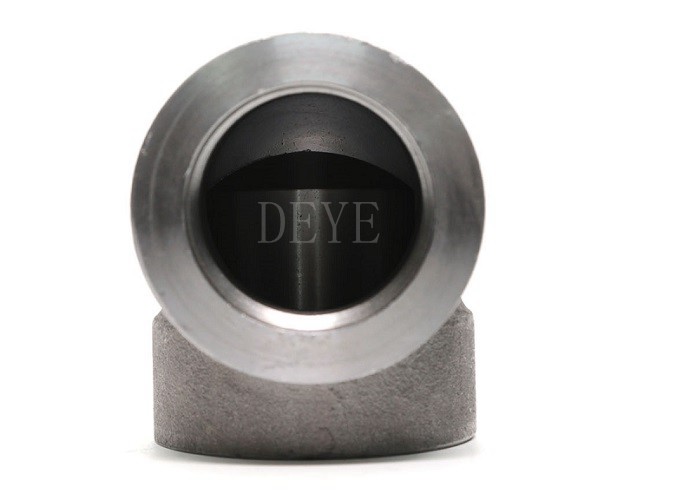

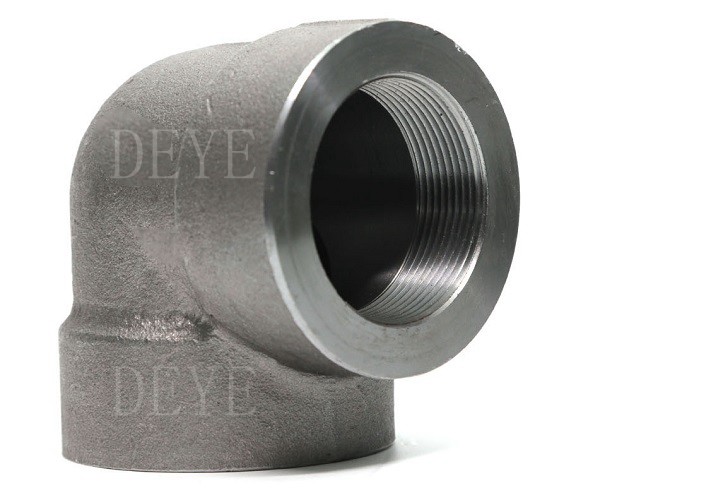

3000# NPT High Pressure Elbow For Petro Gas Industry
| Place of Origin | CHINA |
|---|---|
| Brand Name | DEYE |
| Certification | ISO9001:2015 PED |
| Model Number | PF-EL-F02 |
| Minimum Order Quantity | 10PCS |
| Price | USD2-USD50 each pc as per different material |
| Packaging Details | cartons + ply-wooden cases |
| Delivery Time | 7 days for stock items |
| Payment Terms | L/C, , T/T, D/P |
| Supply Ability | 10000pcs each momth |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High Light | NPT high pressure elbow,3000# high pressure elbow,2000LBS high pressure elbow fitting |
||
|---|---|---|---|
Product Description
3000# NPT High Pressure Elbow For Petro Gas Industry
3M is referring to 3000 lbs fittings, which can resist up to 3000 PSI (206 Bars) of pressure. 6M is referring to 6000lbs fittings.
Forged pipe fittings with pressure classes of 2000, 3000, 6000, and 9000 are available. However, Class 3000 and 6000 are the
most frequent pressure classes used in applications
Product Information/Product Description/Basis Information/Specification
| Forged Steel Fitting | ||
| Name | 45D/90D Elbow, Street Elbow, Tee, Cross, Cap, Coupling, Half Coupling, Plug, Bushing, Unin, Hexagon Nipple Outlet, Weldolet, Threadolet, Sockolet, Bull plug, Reducer Insert, Pipe Nipple, Swage Nipple | |
| H.S. Code | 7307920000 | |
| Pressure | Threaded Type | 2000LBS, 3000LBS, 6000LBS |
| Socket-Weld Type | 3000LBS, 6000LBS, 9000LBS | |
| Surface Finish | Anti-Rust Oil,Hot Dipped Galvanised,Customized. | |
| Technology | Forged | |
| Standard | American Standard | ANSI B16.11, MSS SP 97, MSS SP 95, MSS SP 83, ASTM A733 |
| British Standard | BS3799 | |
| Japan Standard | JIS B2316 | |
| Size | 1/8'' - 6'' (DN6 - DN150) | |
| Wall Thickness | SCH5S,SCH10S,SCH10,SCH40S,STD,XS,XXS,SCH20,SCH30,SCH40,SCH60,SCH80,SCH160,XXS | |
| Materials | Mild/Carbon Steel | A234 WPB/WPC,A105,A105N, A350LF2, F11, F22 |
| Stainless Steel | A403 WP304,304(L),316(L),321,310S,347H,316Ti,317(L),F904L,1.4301,1.4307,1.4401,1.4571,1.4541 | |
| Duplex Stainless Steel | UNS31803,SAF2205,UNS32205,UNS31500,UNS32750,UNS32760,1.4462,1.4410,1.4501 | |
| Alloy Steel | Alloy20,A860 WPHY 42-46-52-60-65-70 | |
Features /Characteristics
•Strength and Durability
•Leak-Free Performance
•Pressure Ratings: Forged pipe fittings generally have higher pressure ratings compared to fittings made by other methods.
This makes them ideal for systems that operate under high pressure conditions.
•Resistance to Corrosion
•Wide Range of Shapes and Sizes
•Quality and Consistency
•Longevity
Technology/ Technical Data Sheets
Dimension of socket welding Fittings for 90-Deg Elbow, Cross, Tee, 45deg elbow
Note: Average of socket wall thickness a round periphery shall be no less than listed values.
The minimum values are permitted in localized areas. (All above data are for millimeters )
Application/Usage
Forged high pressure fittings are commonly used in a variety of industries and applications involving high pressure fluid
or gas systems. Some specific applications and uses of forged high pressure fittings include: Oil and Gas Industry,
Power Generation, Chemical Processing,Pharmaceutical industry, Water Treatment, Mining and Construction,
Aerospace and Defense HVAC and Piping
Material Grades:
Forged high pressure pipefittings here mentioned below are only a few of those covered by B16.11 standard. The physical
and chemical values indicated correspond to the latest issued standard, although they are affected by modifications
year after year, so we suggest to use them only as a guide.
Chemical Composition
| ASTM Designation |
Analysis in % | ||||||||
| C | Mn | Si | Max. P | Max. S | Cr | Ni | Mo | ||
| A105 - 05 | |||||||||
| max. 0.35 | 0.60 - 1.05 | 0.10 - 0.35 | 0.035 | 0.04 | max. 0.3 3 4 | max. 0.4 3 4 | max. 0.12 3 | ||
| A182 - 07 | |||||||||
| Grades | F1 F5 F11 Cl. 1 |
max. 0.25 max. 0.15 0.05 - 0.15 |
0.60 - 0.90 0.30 - 0.60 0.30 - 0.60 |
0.15 - 0.35 max. 0.50 0.50 - 1.00 |
0.045 0.030 0.030 |
0.045 0.030 0.030 |
4.00 - 6.00 1.00 - 1.50 |
max. 0.50 | 0.44 - 0.65 0.44 - 0.65 0.44 - 0.65 |
| F11 Cl. 2 / Cl. 3 F22 Cl. 1 / Cl. 3 F304 1 |
0.10 - 0.20 0.05 - 0.15 max. 0.08 |
0.30 - 0.80 0.30 - 0.60 max. 2.00 |
0.50 - 1.00 max. 0.5 max. 1.00 |
0.040 0.040 0.045 |
0.040 0.040 0.030 |
1.00 - 1.50 2.00 - 2.50 18.00 - 20.00 |
8.00 - 11.00 | 0.44 - 0.65 0.87 - 1.13 |
|
| F304 L 1 F316 1 F316L 1 F321 2 |
max. 0.030 max. 0.08 max. 0.030 max. 0.08 |
max. 2.00 max. 2.00 max. 2.00 max. 2.00 |
max. 1.00 max. 1.00 max. 1.00 max. 1.00 |
0.045 0.045 0.045 0.045 |
0.030 0.030 0.030 0.030 |
18.00 - 20.00 16.00 - 18.00 16.00 - 18.00 17.00 - 19.00 |
8.00 - 13.00 10.00 - 14.00 10.00 - 15.00 9.00 - 12.00 |
2.00 - 3.00 2.00 - 3.00 |
|
| A350 - 04 | |||||||||
| Grades | LF1 LF2 Cl. 1 LF2 Cl. 2 LF3 |
max. 0.30 max. 0.30 max. 0.30 max. 0.20 |
0.60 - 1.35 0.60 - 1.35 0.60 - 1.35 max. 0.90 |
0.15 - 0.30 0.15 - 0.30 0.20 - 0.35 0.20 - 0.35 |
0.035 0.035 0.035 0.035 |
0.040 0.040 0.040 0.040 |
max. 0.3 3 4 max. 0.3 3 4 max. 0.3 3 4 max. 0.3 3 4 |
max. 0.4 3 max. 0.4 3 max. 0.4 3 3.3 - 3.7 |
max. 0.12 3 max. 0.12 3 max. 0.12 3 max. 0.12 3 |
| A694 - 03 | |||||||||
| Grades | F42 / F52 / F56 F60 / F65 / F70 | max. 0.26 | max. 1.4 | 0.15 - 0.35 | 0.025 | 0.025 | |||
PHYSICAL PROPERTIES
| ASTM Designatioin |
Tensile strength | Fluency limit Elongation in 50 mm. | Stress | Brinell | |||||
| Hardness (HB) |
|||||||||
| Ksi min. | MPa | Ksi min. | MPa | % min. | % min. | ||||
| A105 - 05 | |||||||||
| 70 | 485 | 36 | 250 | 22 | 30 | 187 max. | |||
| A182 - 07 | |||||||||
| Grades | F1 | 70 | 485 | 40 | 275 | 20 | 30 | 143 - 192 | |
| F5 | 70 | 485 | 40 | 275 | 20 | 35 | 143 - 217 | ||
| F11 Cl. 1 | 60 | 415 | 30 | 205 | 20 | 45 | 121 - 174 | ||
| F11 Cl. 2 | 70 | 485 | 40 | 275 | 20 | 30 | 143 - 207 | ||
| F11 Cl. 3 | 75 | 515 | 45 | 310 | 20 | 30 | 156 - 207 | ||
| F22 Cl. 1 | 60 | 415 | 30 | 205 | 20 | 35 | 170 max. | ||
| F22 Cl. 3 | 75 | 515 | 45 | 310 | 20 | 30 | |||
| F304 | 751 | 5151 | 30 | 205 | 30 | 50 | 156 - 207 | ||
| F304L | 702 | 4852 | 25 | 170 | 30 | 50 | |||
| F316 | 751 | 5151 | 30 | 205 | 30 | 50 | |||
| F316L | 702 | 4852 | 25 | 170 | 30 | 50 | |||
| F321 | 751 | 5151 | 30 | 205 | 30 | 50 | |||
| A350 - 04 | |||||||||
| Grades | LF1 LF2 Cl. 1 LF2 Cl. 2 |
60 - 85 70 - 95 70 - 95 |
415 - 585 485 - 655 485 - 655 |
30 36 36 |
3 4 3 4 3 4 |
205 250 250 |
25 22 22 |
38 30 30 |
197 max. 197 max. 197 max. |
| LF3 Cl. 1 | 70 - 95 | 485 - 655 | 37.5 3 4 | 260 | 22 | 35 | 197 max. | ||
| LF3 Cl. 2 | 70 - 95 | 485 - 655 | 37.5 3 4 | 260 | 22 | 35 | 197 max. | ||
| A694 - 03 | |||||||||
| Grades | F42 | 60 | 415 | 42 | 290 | 20 | |||
| F52 | 66 | 455 | 52 | 360 | 20 | ||||
| F56 | 68 | 470 | 56 | 385 | 20 | ||||
| F60 | 75 | 515 | 60 | 415 | 20 | ||||
| F65 | 77 | 530 | 65 | 450 | 20 | ||||
| F70 | 82 | 565 | 70 | 485 | 18 | ||||
Production process
Raw Material A105& Stainless-steel bars for forged fittings
Cutting the bars to be proper length for forging
Forging Workshop
Stocks of the raw pieces without marching
Sand Blast to clean and smooth the surface
Machining process
Test the threaded to meet standards
Marking the specification and logo on forged fittings
Finished Products and Package
Our Service
1. Technical support
2. Raw Material Quality control.
3. Inspection during the production time.
4. Final Test includes Surface, Dimension, PT Test, RT test, ultrasonic Test
5. Test Report each shipment
4. Flexible Delivery terms. EXW FOB CIF CFR DDP DDU
5. Flexible payment Ways: LC. TT. DP
6. Customized Package includes Logo. Cases Dimension.
7. 18 months quality Guarantee time.
9. Free replacement by air if any error founded
10. 24 hours to Feedback your questions
