45deg Elbow High Pressure Pipe Fittings With Threaded NPT 2000lbs 3000lbs
| Place of Origin | CHINA |
|---|---|
| Brand Name | DEYE |
| Certification | ISO9001:2015 PED |
| Model Number | PF-EL-F03 |
| Minimum Order Quantity | 10PCS |
| Price | USD2-USD50 each pc as per different material |
| Packaging Details | cartons + ply-wooden cases |
| Delivery Time | 7 days for stock items |
| Payment Terms | L/C, , T/T, D/P |
| Supply Ability | 10000pcs each momth |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High Light | 3000lbs High Pressure Pipe Fittings,3000lbs High Pressure Pipe Fittings,NPT 45deg elbow |
||
|---|---|---|---|
Product Description

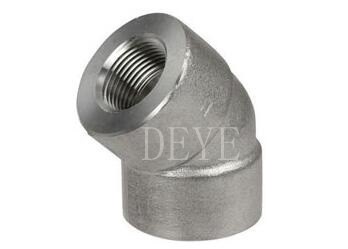

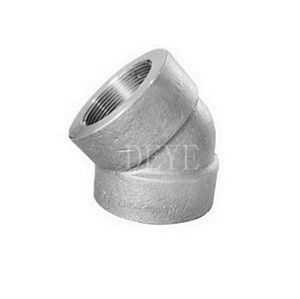

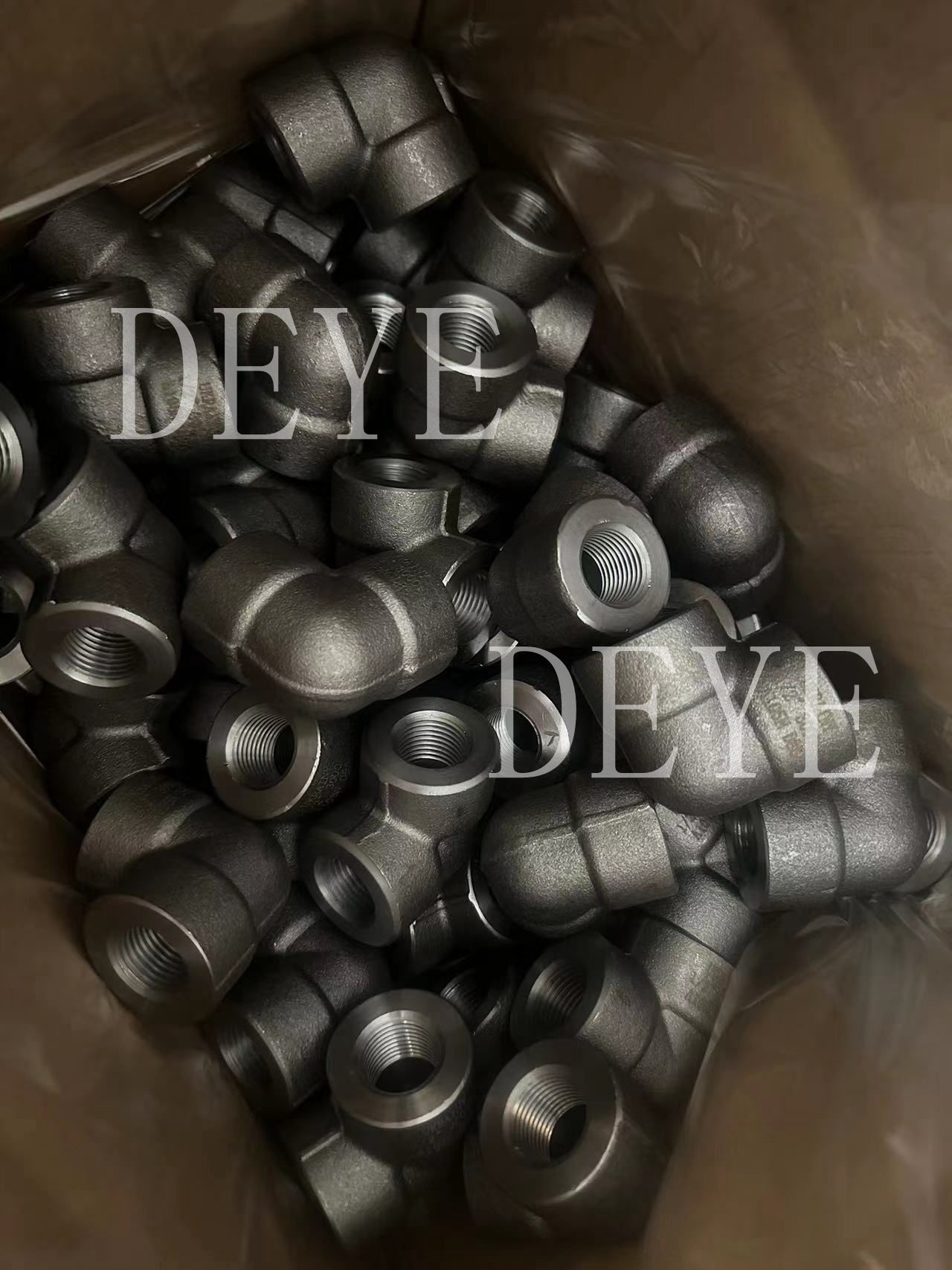

High Pressure 45deg Elbow With Threaded NPT 2000lbs 3000lbs
Elbows: Such pipe fittings are used to change the direction of the flow. Elbows They are majorly available in two standard types - 90 and 45 degree angles owing to their high demand in plumbing. The 90 degree elbow is primarily used to connect hoses to water pumps, valves, and deck drains, while the 45 degree elbow is mostly used in water supply facilities, electronic and chemical industrial pipeline networks, food, air-conditioning pipelines, garden production, agriculture, and solar-energy facility.
Product Information/Product Description/Basis Information/Specification
| Production Name | ANSI B16.11 Forged pipefittings with Socket Welded ends or Threaded ends |
| Types | 90deg Elbow, 45deg Elbows, Street elbow, Tee, cross, full Coupling, half coupling, square Cap, square plug, Hex. Nipples, Bushing, Union, Barrel Nipple, Boss, weldolet, socketolet, threadolet etc |
| Size Range | 1/8" 3/4” 3/8” 1/2” 3/4” 1” 1-1/4” 1-1/2” 2” 2-1/2” 3” 4” |
| Threaded Types | NPT ANSI B16.25 DIN BSPT |
| Material | Carbon Steel: ASTM A105 ,A 182 Grade F 1, A 182 Grade F 5, A 182 Grade F 9, A 182 Grade F 11, f12, f22 A 350 Grade LF 1, A 350 Grade LF2, A 350 Grade LF 4, A 350 Grade LF6, LF8 |
| Stainless Steel: F304(L), F316(L),SS321, SS347H, 904L DUPELX SS 2507, 2205, UNS31803, UNS32750 18Cr-10Ni-Tl 25Cr-20NI 22Cr-5Ni-3Mo-N 25Cr-7Ni-4Mo-N 24Cr-lONi-4Mo-V 25Cr-7Ni-3.5Mo-W-Cb 25Cr-7Ni-3.5Mo-N-Cu-W | |
| Standard | ANSI B16.11, MSS-SP 97, JIS, etc |
| Pressure | 2000lbs, 3000lbs, 6000lbs, 9000lbs, etc |
Features /Characteristics
•DURABLES
Selected raw materials, The quality of raw materials is the top priority. Strict quality control and test to make the raw
Material meets both requirements on Chemical composition and Mechanical Properties.
•PRECISION
Advanced CNC machining center and experienced technicians make the products in a precise dimension, less tolerance,
bigly improve the quality of originality.
•CUSTOMIZE
Professional Engineers can design the Forged high-pressure fittings in standard and non standard customized according
to customers' requirements both on specifications and materials
•STRICT
We have completed testing equipment’s here in our factory like spectrograph, hardness tester, Impact Test Equipment,
CMM, ect. All these testing dates will be recorded in the testing reports and sent to our customers for checking
Technology/ Technical Data Sheets
Dimension of socket welding Fittings for 90-Deg Elbow, Cross, Tee, 45deg elbow
Note: Average of socket wall thickness a round periphery shall be no less than listed values.
The minimum values are permitted in localized areas. (All above data are for millimeters )
Application/Usage
Forged high pressure fittings are commonly used in a variety of industries and applications involving high pressure fluid
or gas systems. Some specific applications and uses of forged high pressure fittings include: Oil and Gas Industry,
Power Generation, Chemical Processing,Pharmaceutical industry, Water Treatment, Mining and Construction,
Aerospace and Defense HVAC and Piping
Material Grades:
Forged high pressure pipefittings here mentioned below are only a few of those covered by B16.11 standard. The physical
and chemical values indicated correspond to the latest issued standard, although they are affected by modifications
year after year, so we suggest to use them only as a guide.
Chemical Composition
| ASTM Designation |
Analysis in % | ||||||||
| C | Mn | Si | Max. P | Max. S | Cr | Ni | Mo | ||
| A105 - 05 | |||||||||
| max. 0.35 | 0.60 - 1.05 | 0.10 - 0.35 | 0.035 | 0.04 | max. 0.3 3 4 | max. 0.4 3 4 | max. 0.12 3 | ||
| A182 - 07 | |||||||||
| Grades | F1 F5 F11 Cl. 1 |
max. 0.25 max. 0.15 0.05 - 0.15 |
0.60 - 0.90 0.30 - 0.60 0.30 - 0.60 |
0.15 - 0.35 max. 0.50 0.50 - 1.00 |
0.045 0.030 0.030 |
0.045 0.030 0.030 |
4.00 - 6.00 1.00 - 1.50 |
max. 0.50 | 0.44 - 0.65 0.44 - 0.65 0.44 - 0.65 |
| F11 Cl. 2 / Cl. 3 F22 Cl. 1 / Cl. 3 F304 1 |
0.10 - 0.20 0.05 - 0.15 max. 0.08 |
0.30 - 0.80 0.30 - 0.60 max. 2.00 |
0.50 - 1.00 max. 0.5 max. 1.00 |
0.040 0.040 0.045 |
0.040 0.040 0.030 |
1.00 - 1.50 2.00 - 2.50 18.00 - 20.00 |
8.00 - 11.00 | 0.44 - 0.65 0.87 - 1.13 |
|
| F304 L 1 F316 1 F316L 1 F321 2 |
max. 0.030 max. 0.08 max. 0.030 max. 0.08 |
max. 2.00 max. 2.00 max. 2.00 max. 2.00 |
max. 1.00 max. 1.00 max. 1.00 max. 1.00 |
0.045 0.045 0.045 0.045 |
0.030 0.030 0.030 0.030 |
18.00 - 20.00 16.00 - 18.00 16.00 - 18.00 17.00 - 19.00 |
8.00 - 13.00 10.00 - 14.00 10.00 - 15.00 9.00 - 12.00 |
2.00 - 3.00 2.00 - 3.00 |
|
| A350 - 04 | |||||||||
| Grades | LF1 LF2 Cl. 1 LF2 Cl. 2 LF3 |
max. 0.30 max. 0.30 max. 0.30 max. 0.20 |
0.60 - 1.35 0.60 - 1.35 0.60 - 1.35 max. 0.90 |
0.15 - 0.30 0.15 - 0.30 0.20 - 0.35 0.20 - 0.35 |
0.035 0.035 0.035 0.035 |
0.040 0.040 0.040 0.040 |
max. 0.3 3 4 max. 0.3 3 4 max. 0.3 3 4 max. 0.3 3 4 |
max. 0.4 3 max. 0.4 3 max. 0.4 3 3.3 - 3.7 |
max. 0.12 3 max. 0.12 3 max. 0.12 3 max. 0.12 3 |
| A694 - 03 | |||||||||
| Grades | F42 / F52 / F56 F60 / F65 / F70 | max. 0.26 | max. 1.4 | 0.15 - 0.35 | 0.025 | 0.025 | |||
PHYSICAL PROPERTIES
| ASTM Designatioin |
Tensile strength | Fluency limit Elongation in 50 mm. | Stress | Brinell | |||||
| Hardness (HB) |
|||||||||
| Ksi min. | MPa | Ksi min. | MPa | % min. | % min. | ||||
| A105 - 05 | |||||||||
| 70 | 485 | 36 | 250 | 22 | 30 | 187 max. | |||
| A182 - 07 | |||||||||
| Grades | F1 | 70 | 485 | 40 | 275 | 20 | 30 | 143 - 192 | |
| F5 | 70 | 485 | 40 | 275 | 20 | 35 | 143 - 217 | ||
| F11 Cl. 1 | 60 | 415 | 30 | 205 | 20 | 45 | 121 - 174 | ||
| F11 Cl. 2 | 70 | 485 | 40 | 275 | 20 | 30 | 143 - 207 | ||
| F11 Cl. 3 | 75 | 515 | 45 | 310 | 20 | 30 | 156 - 207 | ||
| F22 Cl. 1 | 60 | 415 | 30 | 205 | 20 | 35 | 170 max. | ||
| F22 Cl. 3 | 75 | 515 | 45 | 310 | 20 | 30 | |||
| F304 | 751 | 5151 | 30 | 205 | 30 | 50 | 156 - 207 | ||
| F304L | 702 | 4852 | 25 | 170 | 30 | 50 | |||
| F316 | 751 | 5151 | 30 | 205 | 30 | 50 | |||
| F316L | 702 | 4852 | 25 | 170 | 30 | 50 | |||
| F321 | 751 | 5151 | 30 | 205 | 30 | 50 | |||
| A350 - 04 | |||||||||
| Grades | LF1 LF2 Cl. 1 LF2 Cl. 2 |
60 - 85 70 - 95 70 - 95 |
415 - 585 485 - 655 485 - 655 |
30 36 36 |
3 4 3 4 3 4 |
205 250 250 |
25 22 22 |
38 30 30 |
197 max. 197 max. 197 max. |
| LF3 Cl. 1 | 70 - 95 | 485 - 655 | 37.5 3 4 | 260 | 22 | 35 | 197 max. | ||
| LF3 Cl. 2 | 70 - 95 | 485 - 655 | 37.5 3 4 | 260 | 22 | 35 | 197 max. | ||
| A694 - 03 | |||||||||
| Grades | F42 | 60 | 415 | 42 | 290 | 20 | |||
| F52 | 66 | 455 | 52 | 360 | 20 | ||||
| F56 | 68 | 470 | 56 | 385 | 20 | ||||
| F60 | 75 | 515 | 60 | 415 | 20 | ||||
| F65 | 77 | 530 | 65 | 450 | 20 | ||||
| F70 | 82 | 565 | 70 | 485 | 18 | ||||
Production Procedure
Raw Material A105& Stainless-steel bars for forged fittings
Cutting the bars to be proper length for forging
Forging Workshop
Stocks of the raw pieces without marching
Sand Blast to clean and smooth the surface
Machining process
Test the threaded to meet standards
Marking the specification and logo on forged fittings
Finished Products and Package
Our Service
1. Technical support
2. Raw Material Quality control.
3. Inspection during the production time.
4. Final Test includes Surface, Dimension, PT Test, RT test, ultrasonic Test
5. Test Report each shipment
4. Flexible Delivery terms. EXW FOB CIF CFR DDP DDU
5. Flexible payment Ways: LC. TT. DP
6. Customized Package includes Logo. Cases Dimension.
7. 18 months quality Guarantee time.
9. Free replacement by air if any error founded
10. 24 hours to Feedback your questions
