Stainless Steel Screwed Threaded Pipe Fittings Reduce Coupling
| Place of Origin | China |
|---|---|
| Brand Name | DEYE |
| Certification | ISO9001:2015 PED |
| Model Number | STH-TH-4 |
| Minimum Order Quantity | 10pcs |
| Price | USD0.5-USD50 for each pc |
| Packaging Details | Cartons+Ply-wooden cases, Pallets |
| Delivery Time | 7 days for stock items |
| Payment Terms | T/T, L/C, D/P |
| Supply Ability | 1000000PCS one month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High Light | Screwed Threaded Pipe Fittings,Stainless Steel Threaded Pipe Fittings,NPT reduce coupling |
||
|---|---|---|---|
Product Description

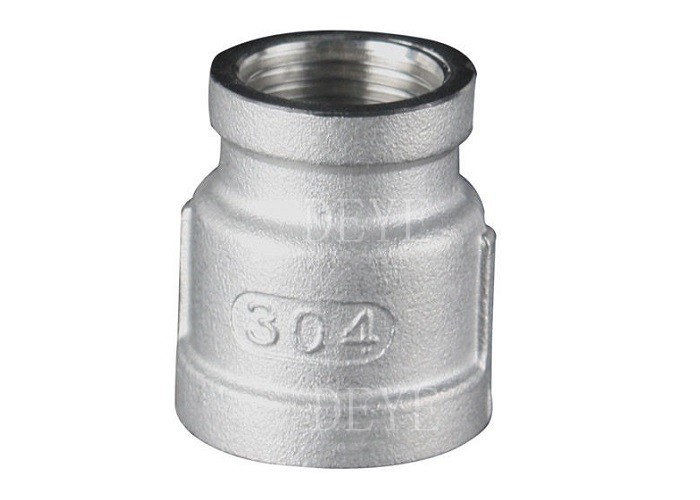

STAINLESS STEEL SCREWED THREADED PIPE FITTINGS REDUCE COUPLING
A reducing coupling is designed to accept pipes into either end. For example a 25 mm to 20 mm reducing coupling accepts
a 25 mm pipe into one end and 20 mm pipe into the other. A 25mm to 20mm fitting reducer accepts a 20mm pipe into one
end and the other end goes inside a 25mm fitting such as an elbow or coupling or tee
A reducer couplings with threaded NPT ANSI B16.1.20.1, or screw BSPT DIN2999, it is typically used in pump station pipe
work to reduce the size of the suction pipe to match the size of the pump suction end flange.
Product Information/Product Description/Basis Information/Specification
| Description | Stainless Steel Screwed Threaded Pipe Fittings Reduce Coupling |
| Product name | threaded NPT BSPT 150PSI Elbows, Reducers, Coupling, Plug, Bushing, Union, Tee, cross, caps Stainless Steel Screwed Pipe Fittings Threaded Pipe Fittings Union, Hex Nipple, bushing, reducer socket, 45 90 degree elbow, Square Head plug, coupling, Y pipe joints tee |
| Size | 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4" 5" 6" 8" |
| Gasket | NBR, FKM |
| Thread | BSPT,BSPP, NPT,PS , DIN |
| Material | stainless steel201,202, stainless steel304, stainless steel 316 |
| Casting Method | Investment precision casting, CNC machine |
| Application | Oil, Water, Industrial, Chemical |
| Test pressure | Usually 150PSI |
| Package | pcs/polybag, polybag/carton, cartons/pallet or according to your requirement |
| Advantages | 1.OEM and Customized service can be provided |
| 2. With experience,quality guaranteed | |
| 3. Approved by ISO9001:2015 | |
| 4. With independent open mold capacity, OEM supposed |
Technology/ Technical Data Sheets
 |
|
|
|
|
|
| Reducing Coupling | Hex. Bushing | Hose Nipple | |||
| SIZE | C1 | C2 | SIZE | C1 | C2 | ||
| D1 | D2 | D1 | D2 | ||||
| 1/8" | - | - | - | 1-1/4" | 1/8"-1 | 44 | 26 |
| 1/4" | 1/8" | 27 | 18 | 1-1/2" | 1/8"-1-1/4" | 48 | 29.5 |
| 3/8" | 1/8"-1/4" | 34 | 19 | 2" | 1/8"-1-1/2" | 56 | 32 |
| 1/2" | 1/8"-3/8" | 36 | 22 | 2-1/2" | 1/8"-2" | 62 | 36.5 |
| 3/4" | 1/8"-1/2" | 35 | 24 | 3" | 1/8"-2-1/2" | 67 | 37.5 |
| 1" | 1/8"-3/4" | 40 | 27 | 4" | 1/8"-3" | 76 | 42 |
Production Process
Common used Material Grade
SS316 Chemical Composition
ASTM A351 CF8M, SS316 Chemical Composition in %
| ASTM A351 CF8M, SS316 Chemical Composition in % | ||||||||
| C | Mn | P | S | Si | Ni | Cr | Mo | |
| Min. | 9.0 | 18.0 | 2.00 | |||||
| Max. | 0.080 | 1.500 | 0.040 | 0.040 | 1.500 | 12.0 | 21.0 | 3.00 |
SS316 Mechanical Properties of the Fittings at room temperature
| SS316/SS316L | Tensile Strength Rm (N/mm2) | Upper Yield Point ReH (N/mm2) min. | Elongation at rupture A5 (%) min. |
Hardness Test (HRB) |
| Min. | 485 | 205 | 30 | |
| Max. | 80 |
SS304 Chemical Composition
| ASTM A351 CF8, SS304 Chemical Composition in % | ||||||||
| C | Mn | P | S | Si | Ni | Cr | Mo | |
| Min. | 8.0 | 18.0 | ||||||
| Max. | 0.080 | 1.500 | 0.040 | 0.040 | 2.000 | 11.0 | 21.0 | 0.50 |
SS304 Mechanical Properties of the Fittings at room temperature
| SS304/SS304L | Tensile Strength Rm (N/mm2) | Upper Yield Point ReH (N/mm2) min. | Elongation at rupture A5 (%) min. |
Hardness Test (HRB) |
| Min. | 485 | 205 | 35 | |
| Max |
Application/ Usage:
Threaded pipe fittings are commonly used in Water gas pipes, small diameter water pipes, compressed air pipes and low-pressure steam pipes.
