BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug

  • BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug
  • BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug
  • BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug
Place of Origin China
Brand Name DEYE
Certification ISO9001:2015 PED
Model Number STH-TH-5
Document Product Brochure PDF
Minimum Order Quantity 10pcs
Price USD0.5-USD50 for each pc
Packaging Details Cartons+Ply-wooden cases, Pallets
Delivery Time 7 days for stock items
Payment Terms T/T, L/C, D/P
Supply Ability 1000000PCS one month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

Screwed threaded fittings

,

DIN threaded fittings

,

BSPT steel npt fittings
Leave a Message
Product Description

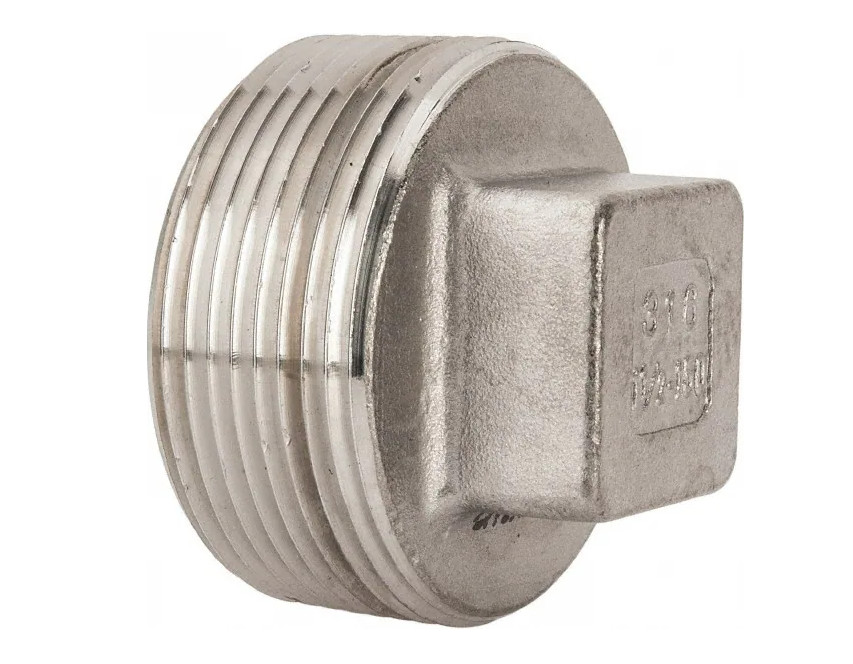

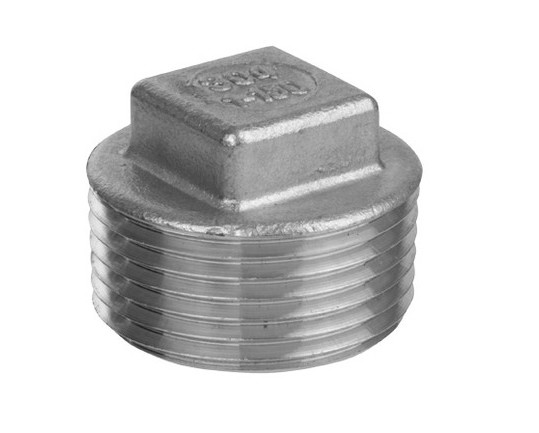

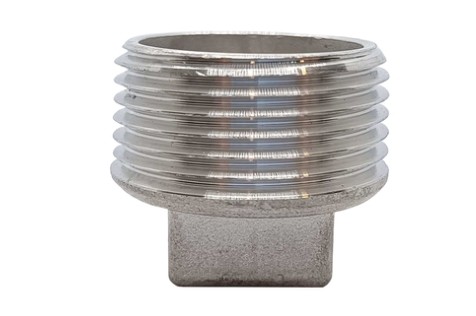

SS SCREWED THREADED PIPE FITTINGS FOR SQUARE PLUG



Square plugs are designed to be fit into holes or cavities. They are used for the ends of shafts, tubes, pipes, fittings,

connectors, screws, bars, or other shapes. Pipe plugs are available in various shapes and materials as square Plug,

round plug, Hex. Plug. They also come in a variety of different cross sections.



Square plugs are used to stop fluid movement in the piping system. It has a male threaded end. The NPT (tapered)

thread connection makes it easy to assemble and disassemble during maintenance and installation.



Product Information/Product Description/Basis Information/Specification



Description 　BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug
Product name threaded NPT BSPT 150PSI Elbows, Reducers, Coupling, Plug, Bushing, Union, Tee, cross, caps Stainless Steel Screwed Pipe Fittings Threaded Pipe Fittings
Union, Hex Nipple, bushing, reducer socket, 45 90 degree elbow, Square Head plug, coupling, Y pipe joints tee
Size 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4" 5" 6" 8"
Gasket NBR, FKM
Thread BSPT,BSPP, NPT,PS , DIN
Material stainless steel201,202, stainless steel304, stainless steel 316
Casting Method Investment precision casting, CNC machine
Application Oil, Water, Industrial, Chemical
Test pressure Usually 150PSI
Package pcs/polybag, polybag/carton, cartons/pallet or according to your requirement
Advantages 1.OEM and Customized service can be provided
2. With experience,quality guaranteed
3. Approved by ISO9001:2015
4. With independent open mold capacity, OEM supposed



Technology/ Technical Data Sheets



BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug 0 BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug 1 BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug 2 BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug 3 BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug 4 BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug 5
90° Elbow 90° Street Elbow 45° Elbow
BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug 6 BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug 7 BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug 8 BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug 9 BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug 10 BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug 11
Tee Cross Hex. Nipple
BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug 12 BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug 13 BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug 14 BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug 15 BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug 16 BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug 17
Hex. Plug Square Plug Hex. Cap
BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug 18 BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug 19 BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug 20 BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug 21 BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug 22 BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug 23
Round Cap Coupling (Socket) Half Coupling



SIZE L1 L2 L3 L4 L5 L6 L7 L8 L9 L10 L11 L12
1/8” 16 18 16 17 25 22 18 17 13 - - -
1/4” 19 19 19 20 30 30 18 21 15 15 25 11
3/8” 24 20 25 24 34 31 19 23 17 17 26 12
1/2” 25.5 20 28 26 37 35 22 24 19 17.5 32 15
3/4” 29.5 23 32 30 43 39 24 25 18 20.5 33 17
1” 36 26 39 36 51 45 27 27 20.5 23.5 38 19
1-1/4” 43.5 30 45 44 59 48 26 34.5 22 25.5 44 22
1-1/2” 46.5 33 49 47 64 50 29.5 35.5 23 26.5 44 23
2” 55.5 38 57 54 74 57 32 36 25.5 28 50 25
2-1/2” 66 45 69 66 90 64 36.5 43 28.5 31 58 29
3” 74 52 - 74 99 70 37.5 46.5 30.5 33 66 33
4” 90 64 - 90 115 79 42 52 38.5 37 72 36



Production Process



BSPT BSPP NPT PS DIN SS Screwed Threaded Fittings For Square Plug 24



Common used Material Grade



SS316 Chemical Composition

ASTM A351 CF8M, SS316 Chemical Composition in %

ASTM A351 CF8M, SS316 Chemical Composition in %
　 C Mn P S Si Ni Cr Mo
Min. 　 　 　 　 　 9.0 18.0 2.00
Max. 0.080 1.500 0.040 0.040 1.500 12.0 21.0 3.00



SS316 Mechanical Properties of the Fittings at room temperature



SS316/SS316L Tensile Strength Rm (N/mm2) Upper Yield Point ReH (N/mm2) min. Elongation at rupture A5
(%)
min.		 Hardness Test (HRB)
Min. 485 205 30 　
Max. 　 　 　 80





SS304 Chemical Composition

ASTM A351 CF8, SS304 Chemical Composition in %
　 C Mn P S Si Ni Cr Mo
Min. 　 　 　 　 　 8.0 18.0 　
Max. 0.080 1.500 0.040 0.040 2.000 11.0 21.0 0.50



 SS304 Mechanical Properties of the Fittings at room temperature



SS304/SS304L Tensile Strength Rm (N/mm2) Upper Yield Point ReH (N/mm2) min. Elongation at rupture A5
(%)
min.		 Hardness Test (HRB)
Min. 485 205 35 　
Max 　 　 　 　



Application/ Usage:



Threaded pipe fittings are commonly used in Water gas pipes, small diameter water pipes, compressed air pipes and low-pressure steam pipes.
