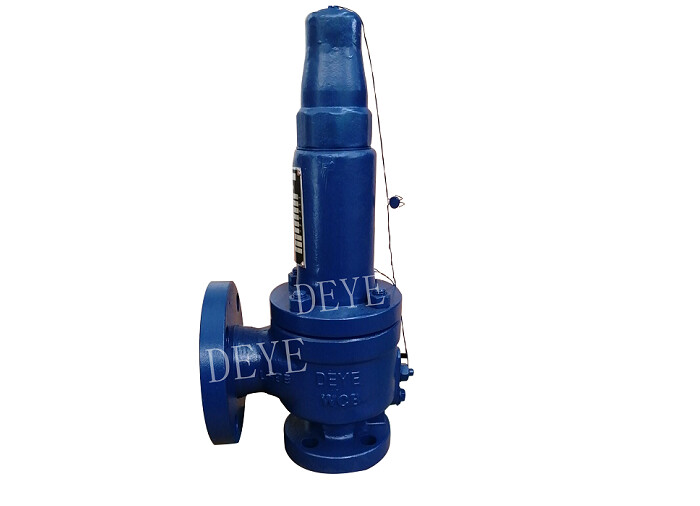

Steel Automatic Control Valve Pressure Relief Valve For Water
| Place of Origin | CHINA |
|---|---|
| Brand Name | DEYE |
| Certification | ISO9001:2015 PED |
| Model Number | SV-150-2x3 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 10 PCS |
| Price | USD15-USD20000 EACH |
| Packaging Details | carton box+ ply wooden cases or carton+ Pallets |
| Delivery Time | 20 days for usual order, 7 days for stocked items |
| Payment Terms | T/T, L/C, D/P |
| Supply Ability | 1000pcs one month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Valve Body Material | ASME SA 216 Gr. WCB CS | ||
|---|---|---|---|
| Highlight | Automatic Control Valve,Steel Control Valve,Water pressure relief valve |
||
Product Description
carbon steel flanged PN25 pressure relief valve
Steel Automatic Control Valve Pressure Relief Valve For Water
Quick details；
PRESSURE RELIEF SAFETY VALVE 150#
Safety relief, Close bonnet, Full nozzle, Bolted cap
Fluid state: liquid
Body and bonnet: ASME SA 216 Gr. WCB CS
Disc and Seat:304
Resilient seat seal: Viton
Guide and rings:SS316
Spring:50CrVA
Nozzle: 304
Percent overpressure:10%
Valve discharge coefficient:0.65
Sizing basis: Blocked discharge
Product Range:
| Sizes | 1/2" x 1", 3/4" x 1.1/4", 1" x 1.1/2", 1.1/4" x 2", 1.1/2" x 2.1/2", 2" x 3", 2.1/2" x 4" |
| Connections | Flanged DIN or ANSI |
| Materials | Carbon Steel or Stainless Steel |
| Disk Material | Metal, Viton, Nylon, PEEK |
| Joints & Seals | NBR, FPM, EPDM (depending upon model) |
| Medium | Steam, Gases and Liquids |
| Set Pressure | 0.1 to 220 Barg (depending upon size) |
| Temperature | (32.1) -10 to 280 degC, (32.2) -60 to 280 degC, (32.7) -200 to 280 degC |
Performance
safety valve used to control or limit the pressure in a system; pressure might otherwise build up and create a process upset, instrument or equipment failure, or fire. The pressure is relieved by allowing the pressurized fluid to flow from an auxiliary passage out of the system. The relief valve is designed or set to open at a predetermined set pressure to protect pressure vessels and other equipment from being subjected to pressures that exceed their design limits. When the set pressure is exceeded, the relief valve becomes the "path of least resistance" as the valve is forced open and a portion of the fluid is diverted through the auxiliary route. The diverted fluid (liquid, gas or liquid–gas mixture) is usually routed through a piping system known as a flare header or relief header to a central, elevated gas flare where it is usually burned and the resulting combustion gases are released to the atmosphere. As the fluid is diverted, the pressure inside the vessel will stop rising. Once it reaches the valve's reseating pressure, the valve will close. The blowdown is usually stated as a percentage of set pressure and refers to how much the pressure needs to drop before the valve reseats. The blowdown can vary from roughly 2–20%, and some valves have adjustable blowdowns.
Application
Used in equipment and pipelines with oil, air, water and other media with working temperature ≤300℃.
